Description

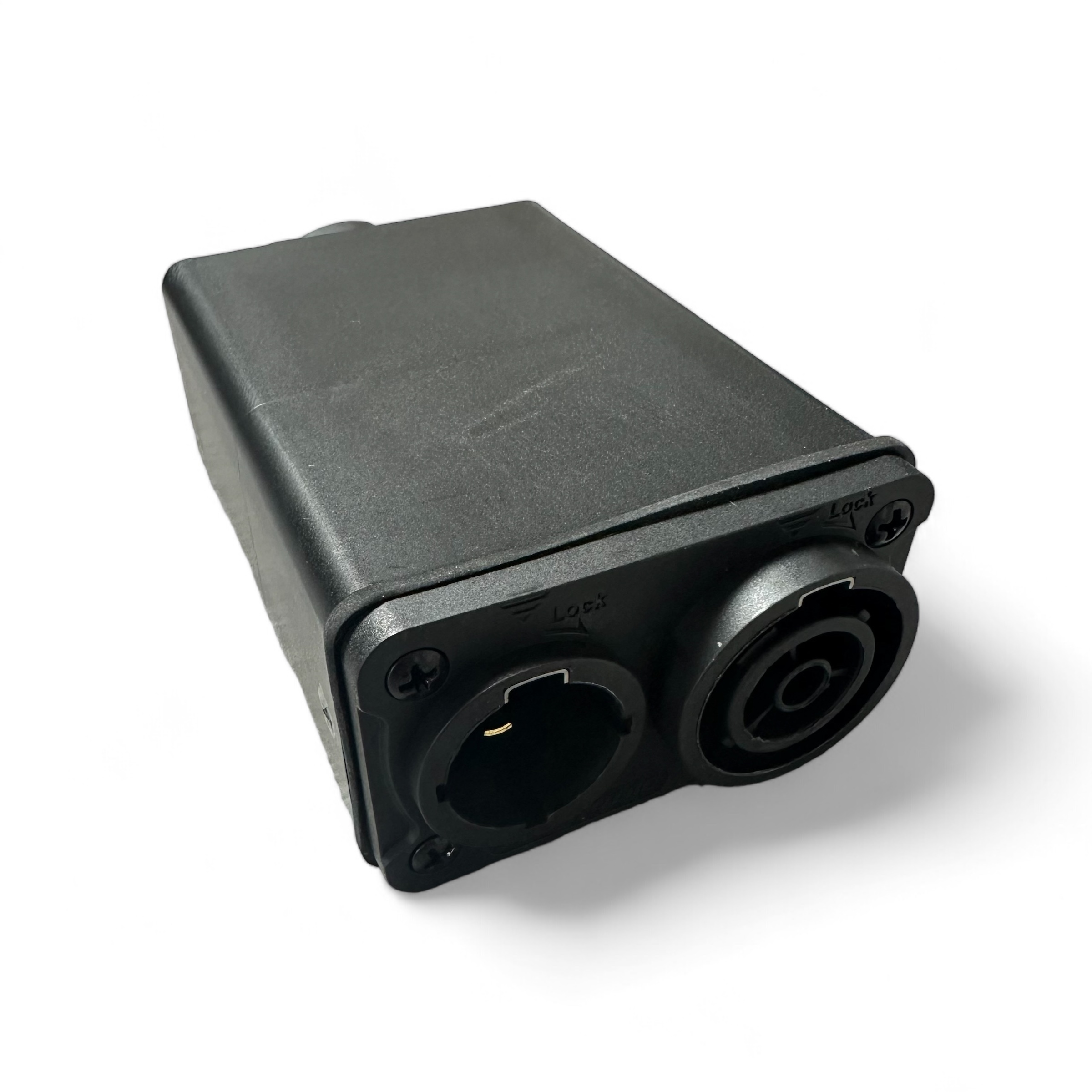

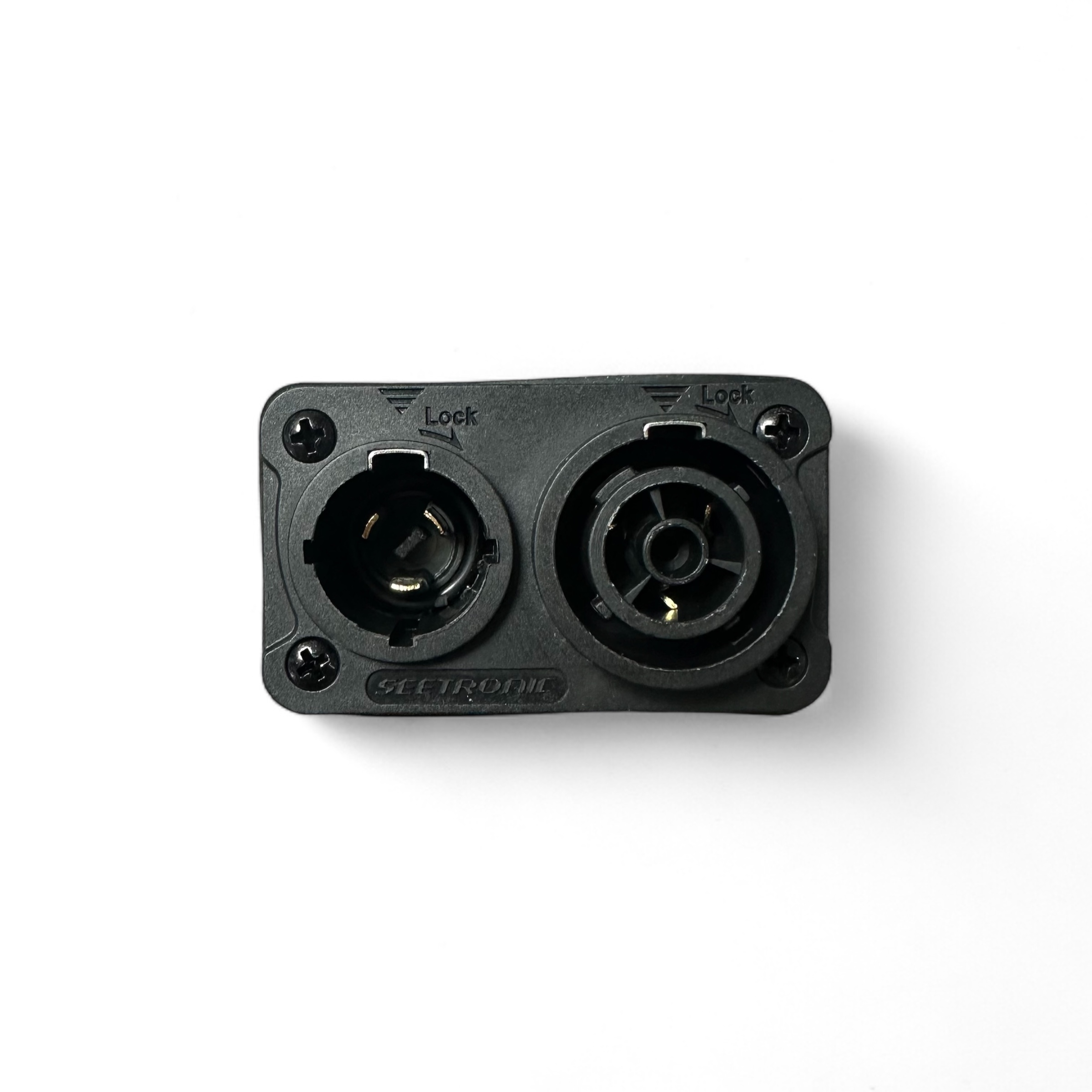

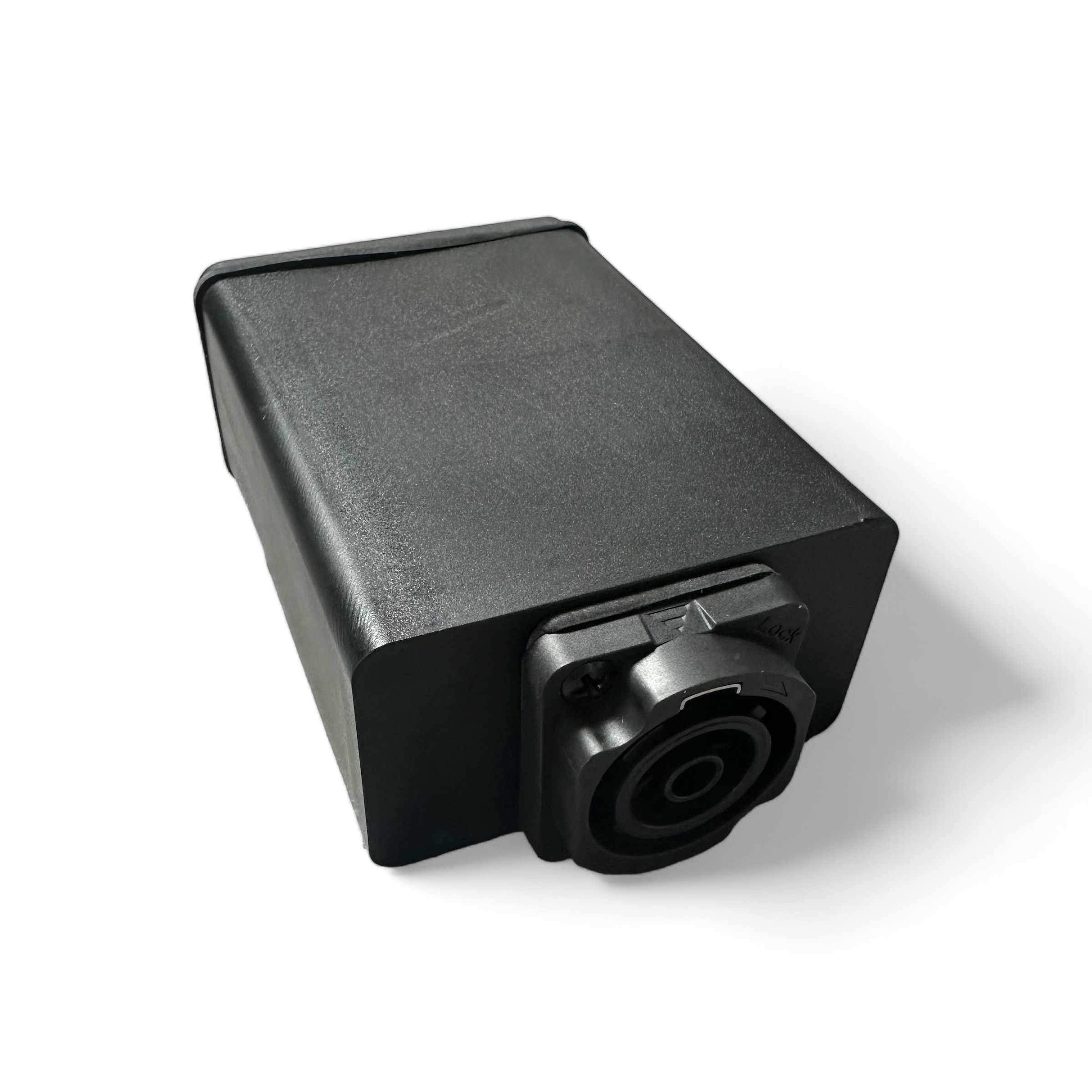

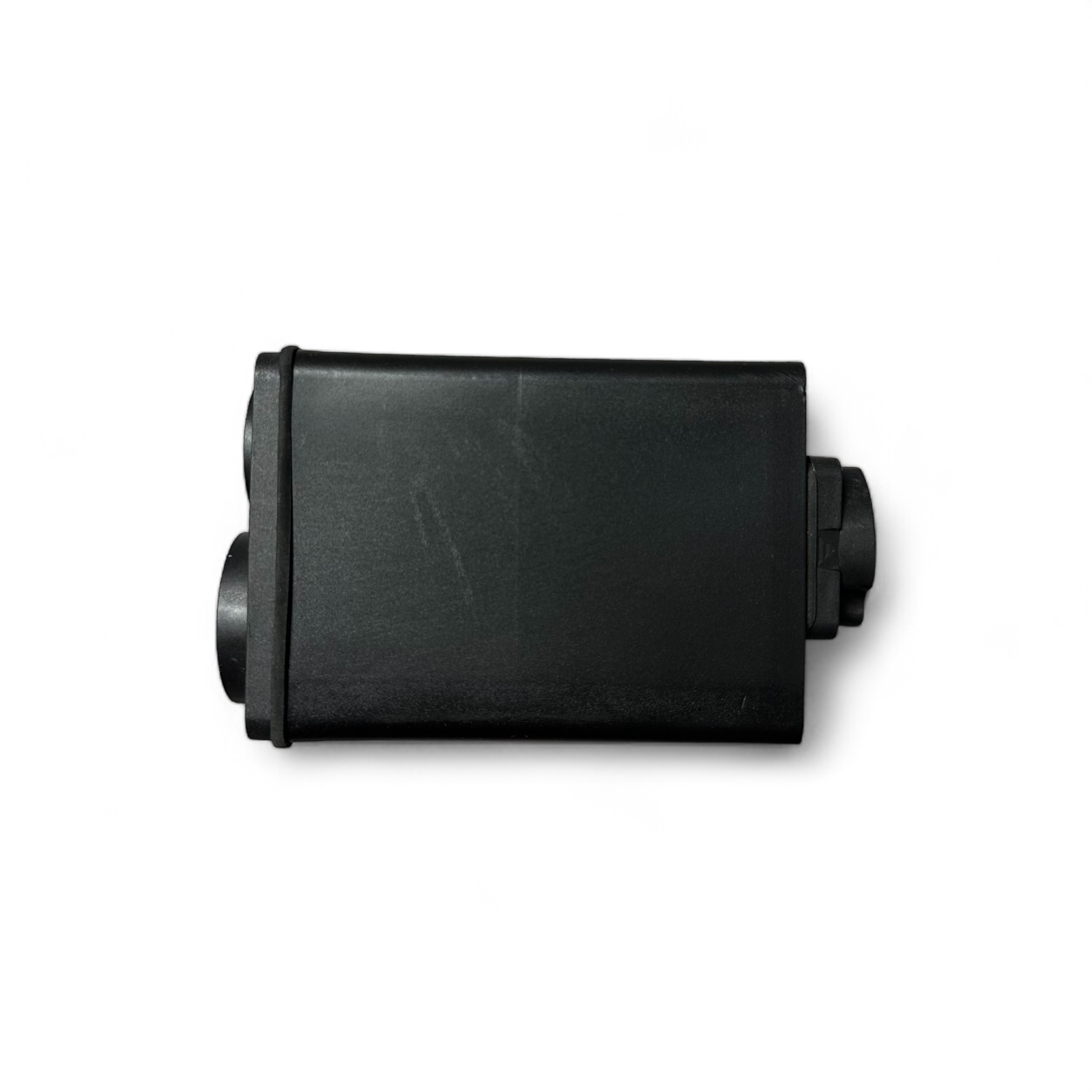

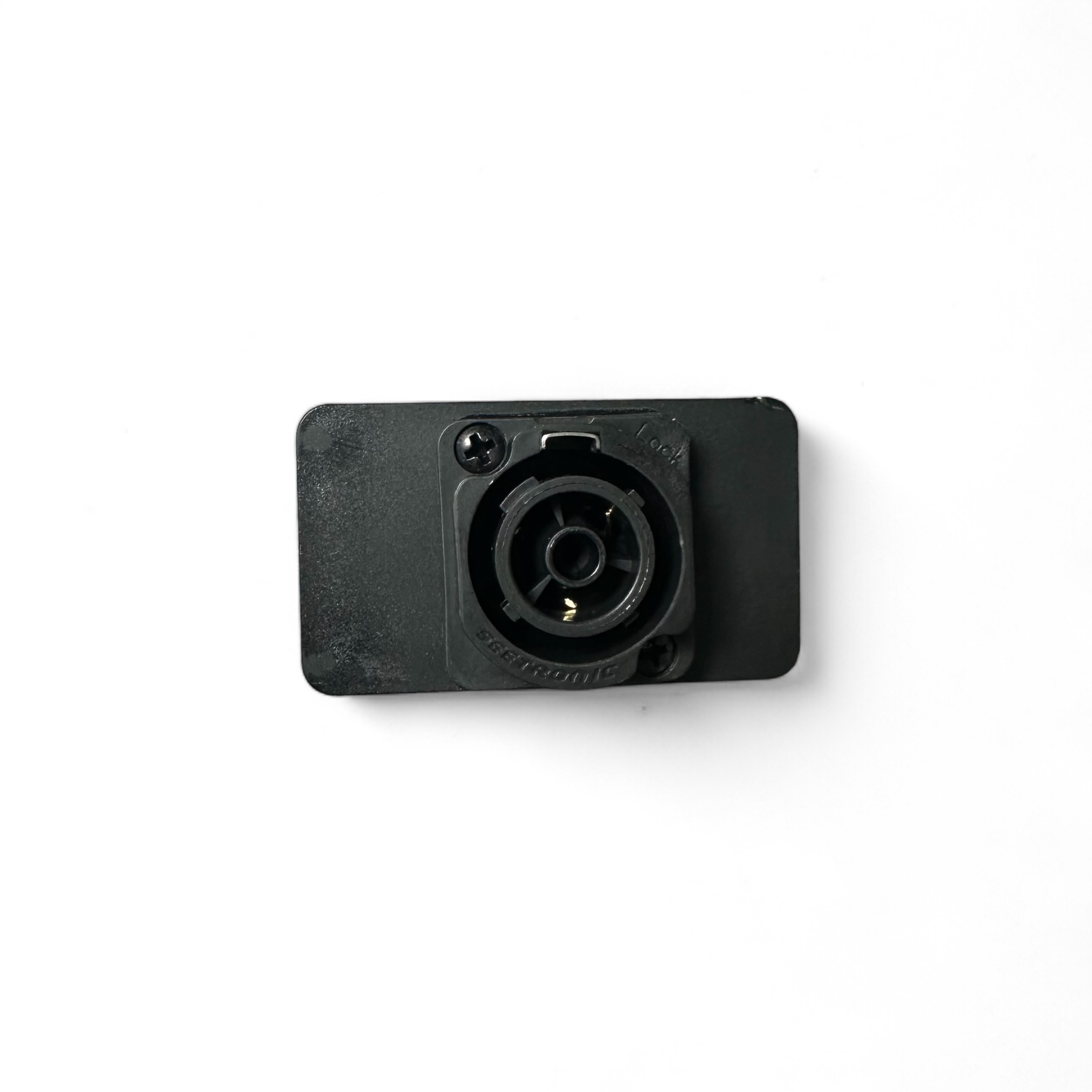

Y-Splitter Box for Seetronic PowerTwist
SAC3PX & SAC3FPX-20 connectors
Technical data:
only conditionally IP65 suitable!
Material: PA6
Dimensions: 61x80x35.4mm LxWxH
Net weight: approx.75g
Seetronic SAC3PX
Locking 20 A single phase in/output combination connector
Gold-plated contacts
UL94-V0 flame retardant
The Power Pro True Inlet/Outlet Combination Chassis is a locking true mains dual combination connector with gold-plated contacts. It is used as an appliance coupler wherever a rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. It is water and airtight.
Seetronic SAC3FPX-20
Locking 20 A single phase connector
Suitable for D-size holes
Gold-plated contacts
UL94-V0 flame retardant
The Power Pro True Outlet Chassis Connector is a locking true mains connector with gold-plated contacts. It is used as an appliance coupler wherever a rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. It is water and airtight, and shaped to fit a D-size hole for easy instalment.
