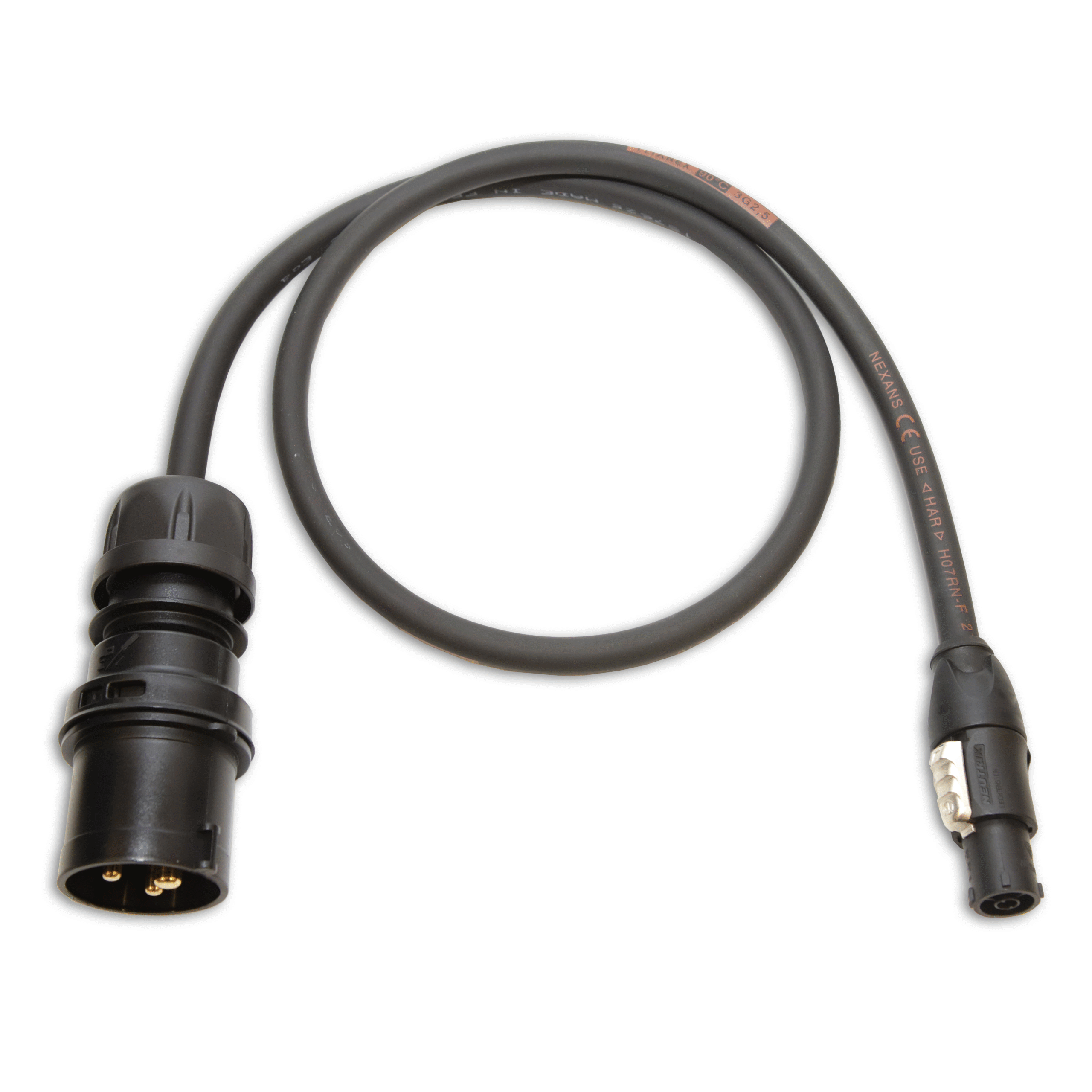

Marten® 16a PCE Plug to Neutrik PowerCON TRUE1 NAC3FX-W-TOP 1.5mm HO7RN-F Cable

£12.81£20.13

Clear

Product Substitution

Due to a current Neutrik True 1 stock availability limitation, this item may be supplied with the alternative Seetronic TR1 connector (which is mateable with the Neutrik True 1 chassis and connector series of products). By ordering and checking the box below, you are agreeing to acceptance of this item as an alternative that will work and be compatible with your product fitted with the Neutrik True 1 connections offerings

Product price: £12.81 inc. VAT | (£10.68 ex. VAT)
Total options:
Order total:

Description

230v 16a Blue Plug
013-6 PCE 16a Blue 230v 2P+E IP44
Shark Plug IP44 Splashproof
with Screw Terminals
Housing Material: PA6
Cantacts: Brass
230v 16a Black Plug
013-6x PCE 16a Black 230v 2P+E IP44
Shark Plug IP44 Splashproof
with Screw Terminals
Housing Material: PA6
Cantacts: Brass

1.5mm 3 Core HO7RN-F Rubber

Application: Designed primarily as a trailing cable for use in the supply of power for portable or mobile tools and equipment
Suitable to operate under light stress in dry or damp conditions.
Current Rating: 23 Amps

Neutrik PowerCON True1 Mains Cable Connector Male NAC3FX-W-TOP

NAC3FX-W-TOP
Locking Female cable connector, screw terminals

The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Features & Benefits

  • Heavy duty sealed power connector for harsh and demanding environment
  • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition)
  • Uses high impact UV-resistant materials
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • Unique Neutrik cable retention
  • ENEC certified according to IEC 60320
  • UL498 certified

Additional information

Brand

Marten®

Cable

Titanex HO7-RNF Rubber

Cable Size

1.5mm²

Connector A

PCE 213-6 32a Blue 230v 2P+E IP44

Connector B

Neutrik True1 NAC3FX-W
